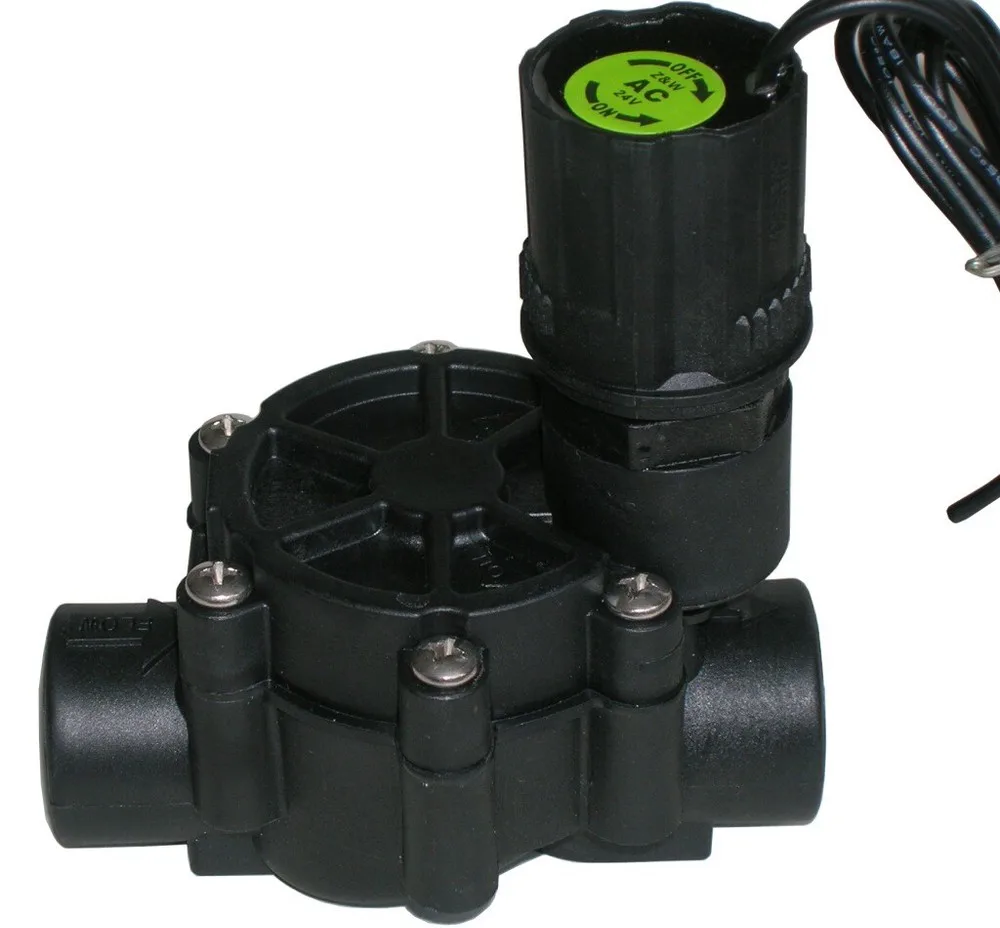

4700uF Female Thread Water Solenoid Valve AC/DC24V 12V

Product Categories

Shenzhen Wofly Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : AFK

Model Number : 075D

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Port size : 3/4",1"

Media : Water

Voltage : 24V. AC24V

Pressure : Medium Pressure

Material : Plastic

Power : Solenoid

Contact Now

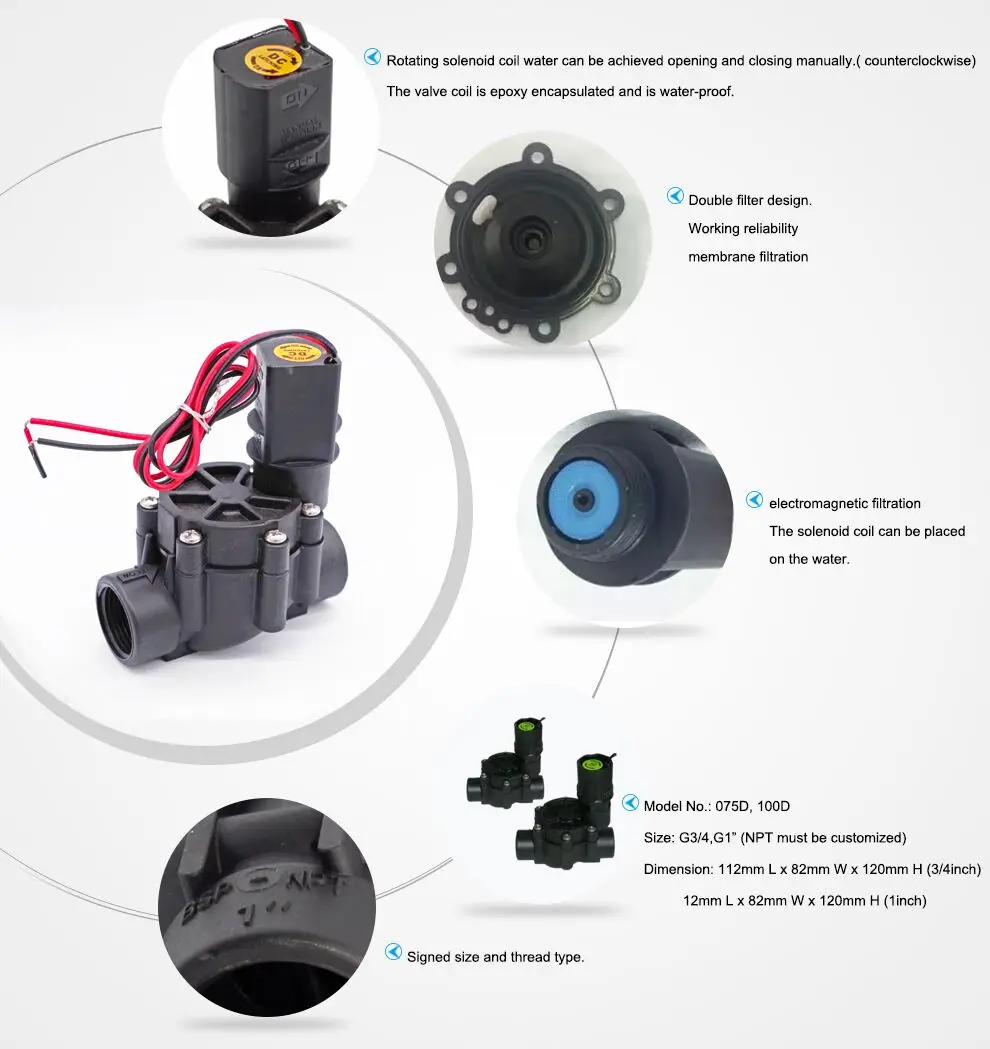

Features:

Globe and angle configuration for flexibility in design and installation.
Rugged PVC construction
Filtered pilot flow to resist debris and clogging of solenoid ports.
Slow closing to prevent water hammer and subsequent system damage.
Manual internal bleed operates the valve without allowing water into the valve box.
One-piece solenoid design with captured plunger and spring for easy servicing.
Prevents loss of parts during field service.
Non-rising flow control handle adjusts water flows as needed.
Normally closed, forward flow design.

solenoid valve Specification :

Material: regular plastic
Water temperature: ≤43°C
Environment temperature: ≤52°C
Service voltage: 6-20VDC
Pulse width: 20-500mSec
Coil resistance: 6 Ω
Capacitance: 4700uF
Coil inductance: 12mH
Connection: female thread
Working pressure: 0.1--1.01MPa
Flow range: 075D 5.0m³/h
Operation mode: valve element lock position,valve open, release position, valve close.

4700uF Female Thread Water Solenoid Valve AC/DC24V 12V
